SHACMAN

SHACMAN Terminal Tractors
-Pure Electric

Engineered to redefine port operations, the SHACMAN Pure Electric Terminal Tractor combines instant torque, whisper-quiet performance, and zero tailpipe emissions with the legendary durability of SHACMAN’s rugged design.

SHACMAN Diesel Terminal Tractors –
Your Dependable Harbor Partner.

Super strong load-bearing casting saddle can vertically bear 35t weight, equipped with sensors to detect trailer connection status in real time, driving more safely.

Zero Emissions. Built for the Future.

Equipped with high-energy-density CATL batteries, SHACMAN’s pure electric terminal tractor delivers long-range endurance and ultra-fast charging—ensuring continuous operation without compromising efficiency.

Specifications

Drive Type: 4×2	Cab Type: LHD / RHD
GCW : 70t 80t 90t(depending on operating conditions)	Power Battery : CATL 281kWh lithium iron phosphate power
Front Axle Capacity: 11t @20 km/h	Motor: TZ400XS003 / 210
5th wheel: Fixed Saddle/Lifting Saddle	Rear axle Capacity: 34t @20km/h, Speed ratio11.98
Lowest 5th wheel height: 1168mm	5th wheel loading capacity:35t

SHACMAN Terminal Tractors
-Pure Electric

Engineered to redefine port operations, the SHACMAN Pure Electric Terminal Tractor combines instant torque, whisper-quiet performance, and zero tailpipe emissions with the legendary durability of SHACMAN’s rugged design.

SHACMAN Diesel Terminal Tractors –
Your Dependable Harbor Partner.

Super strong load-bearing casting saddle can vertically bear 35t weight, equipped with sensors to detect trailer connection status in real time, driving more safely.

Zero Emissions. Built for the Future.

Equipped with high-energy-density CATL batteries, SHACMAN’s pure electric terminal tractor delivers long-range endurance and ultra-fast charging—ensuring continuous operation without compromising efficiency.

Specifications

Drive Type: 4×2	Cab Type: LHD / RHD
GCW : 70t 80t 90t(depending on operating conditions)	Power Battery : CATL 281kWh lithium iron phosphate power
Front Axle Capacity: 11t @20 km/h	Motor: TZ400XS003 / 210
5th wheel: Fixed Saddle/Lifting Saddle	Rear axle Capacity: 34t @20km/h, Speed ratio11.98
Lowest 5th wheel height: 1168mm	5th wheel loading capacity:35t

VIDEO SHOWCASE

SHACMAN Terminal Tractors -AWD Version

Powerful diesel engines, rugged frames, and smart engineering deliver unmatched efficiency when moving semi-trailers and containers. Your terminal’s heartbeat, hardened for 24/7 operations.

标题

Driving Protection

Equipped with a 30-inch brake chamber and WABCO valves,thevehicle's braking air pressure reaches up to 1.2MPa,providing excellent braking power and allowing it to stop calmly even in emergency situations.

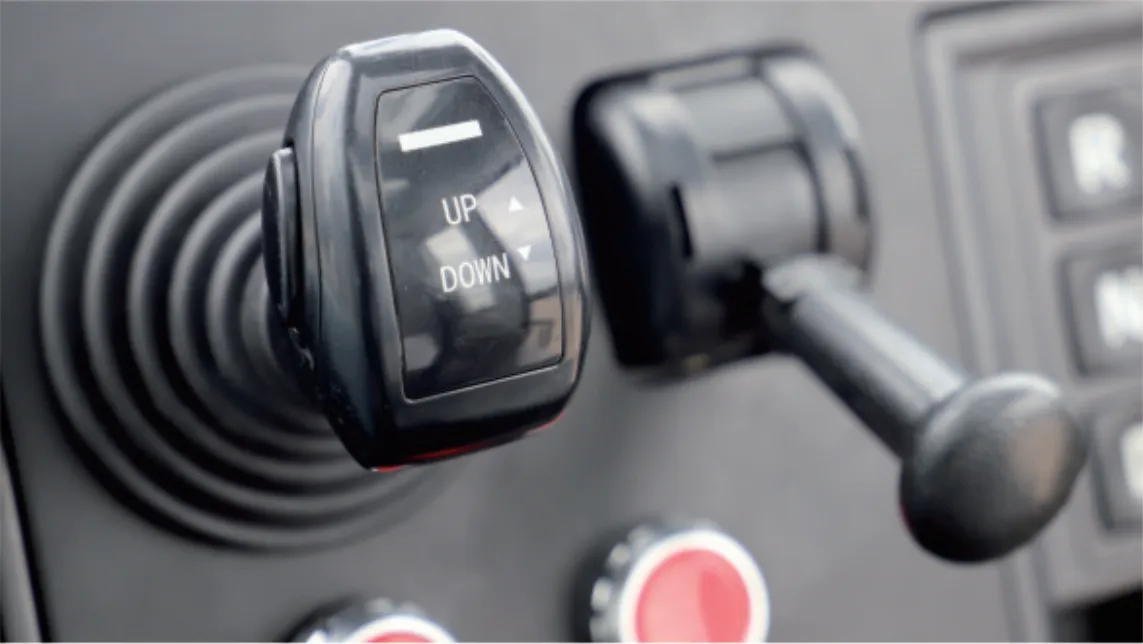

The gearbox has a shift inhibit function that prevents unsafe shifting to reduce risk during driving.

Caring Gaze detects the driver's facial information through the fatigue monitoring camera to prevent fatigue driving and inattention to ensure driving safety.

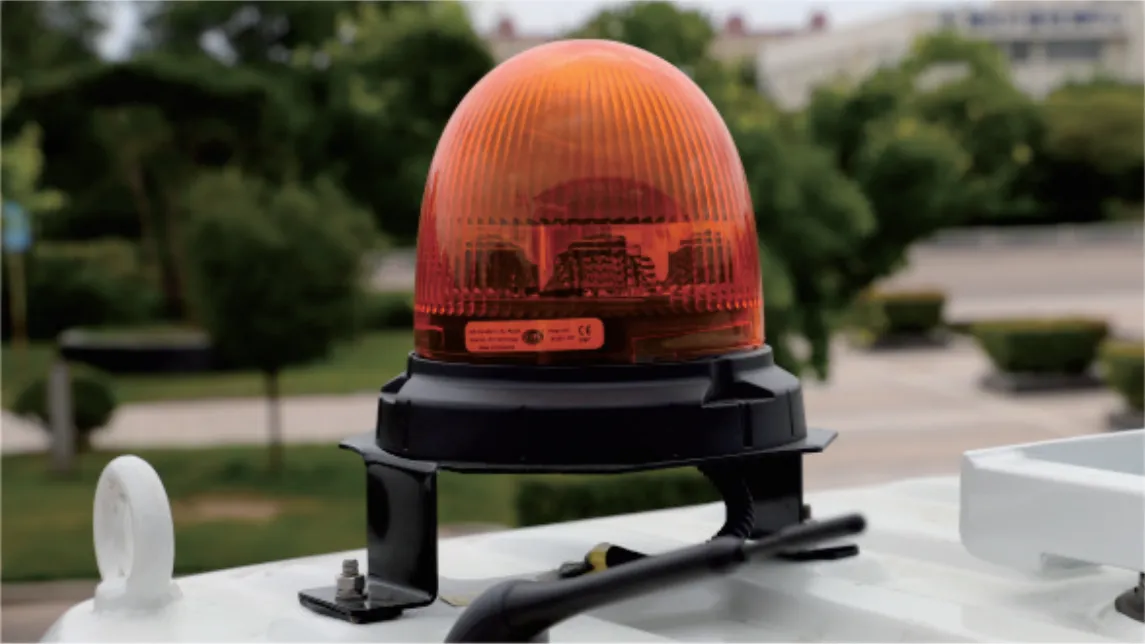

The high-brightness warning lights on the cab roof remind oncoming vehicles and pedestrians to pay attention to safety while driving.

标题

HUMANIZED DESIGN

Powerful diesel engines, rugged frames, and smart engineering deliver unmatched efficiency when moving semi-trailers and containers. Your terminal’s heartbeat, hardened for 24/7 operations.

EASY TO DRIVE
EASY TO OPERATE

EASY TO DRIVE

Air main seats with height-adjustable seat belts allow the driver to maintain an optimal driving position.

Eaton full hydraulic power steering makes turning the steering wheel more effortless and smoother.

The air spring rear suspension makes the entire vehicle ride smoother, reduces bumps and enhances the driving experience.

标题

SPARE PARTS
